- Charge Status: No
- High-concerned chemical: None
- Origin: Mainland China
- Weight (KG): 680
- function: FILLING, Wrapping, Labeling, Sealing, SLITTING, counting
- application: Food, Commodity, Chemical, Apparel, Textiles, Cigarettes, Tobacco
- packaging type: Bags, Film, Foil, Pouch
- packaging material: Plastic, Paper, Metal
- automatic grade: Automatic
- driven type: Electric
- Voltage: 220V 50Hz
- dimension(l*w*h): (L)1488*(W)1080*(H)1490mm
- warranty: 3 years
- key selling points: Multifunctional
- machinery test report: Provided
- Video outgoing-inspection: Provided
- core components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
- After-sales Service Provided: Video Technical Support, Online support, Oline Support
- Filling Material: Granule

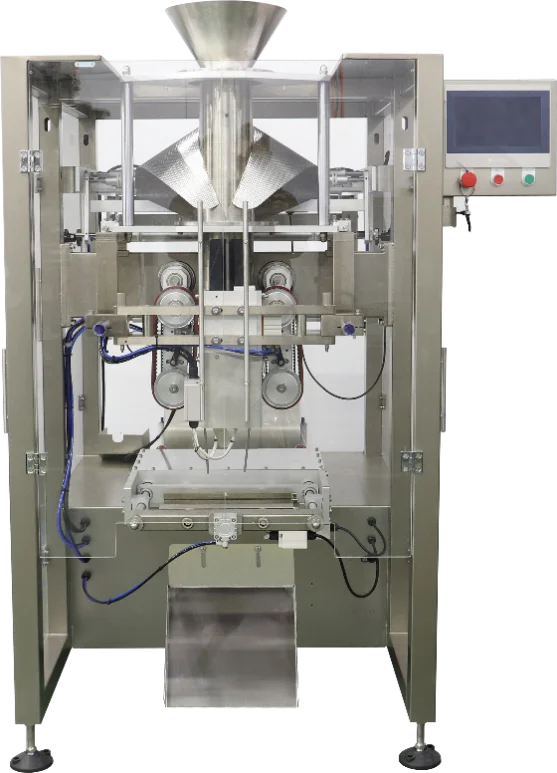

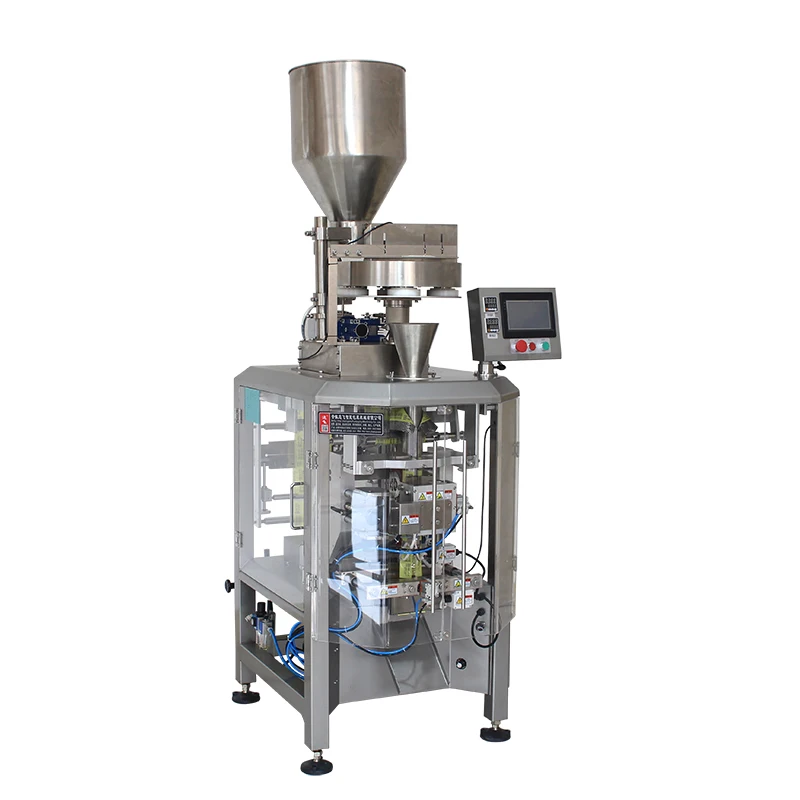

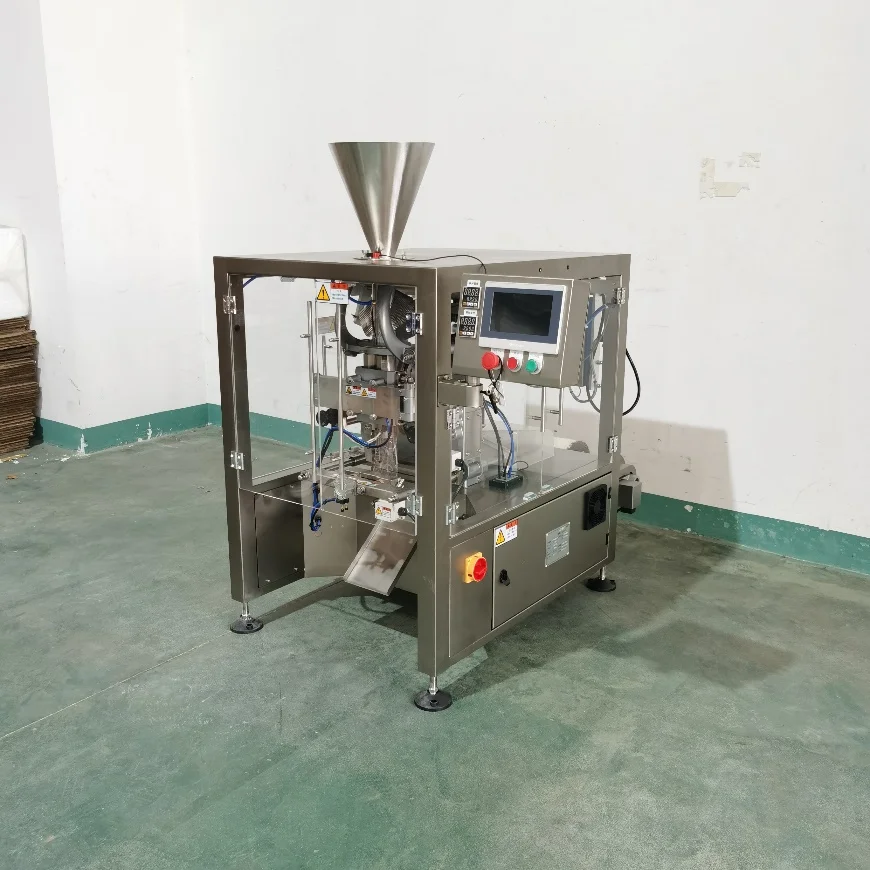

- Product name: Quantitate Bean Sesame Sunflower Melon Vegetable Seed Packing Machine
- Function: Multifunctional
- Keyword: Film Wrap Equipment
- Main Function: Weighing Filling Sealing
- Speed: 5-40 bag/min
- Bag width: 100-250mm can be customized
- Bag length: 60-400mm can be customized
- Bag type: Premade Bag,Zipper bag,Stand up bag,Spout bag
- Machine type: Pneumatic
The machine adopts three servo control system, the system is stable and reliable, high precision, high speed, low noise, touch screen operation is more intelligent and simple.

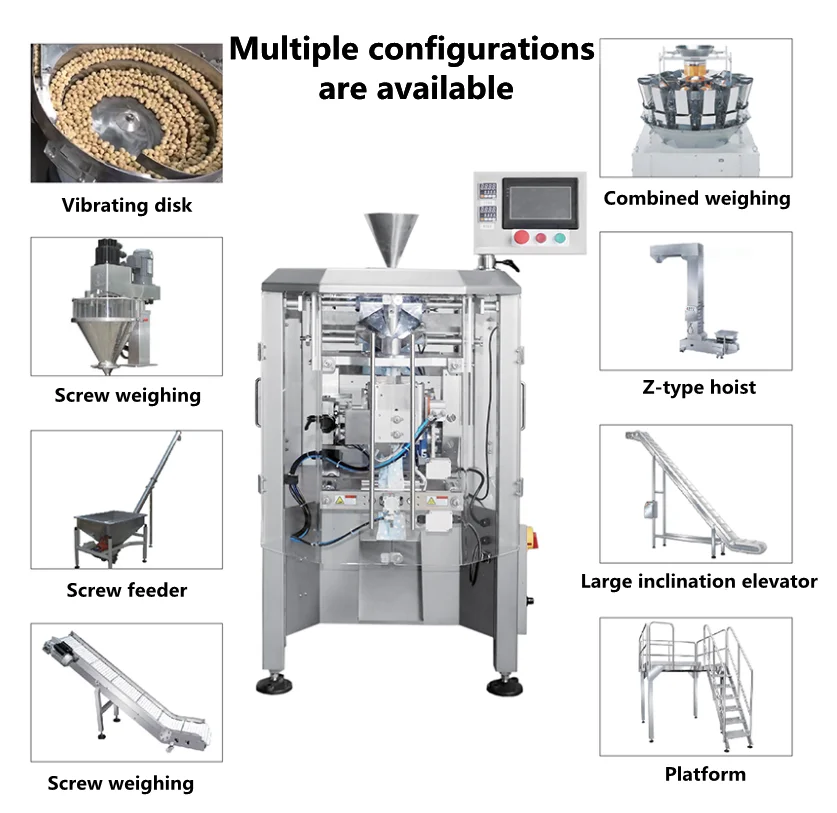

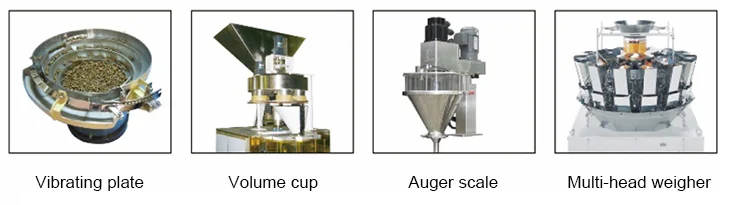

The packaging mode is diversified: low belt, punching bag, multi-bag, etc. It can be equipped with multi-scales, spiral scales, electronic scales, measuring cup system and other measuring equipments, to realize the precise measuring and packaging: Suitable for automatic packaging of granules, strips, flakes, blocks, balls, powders and other products.

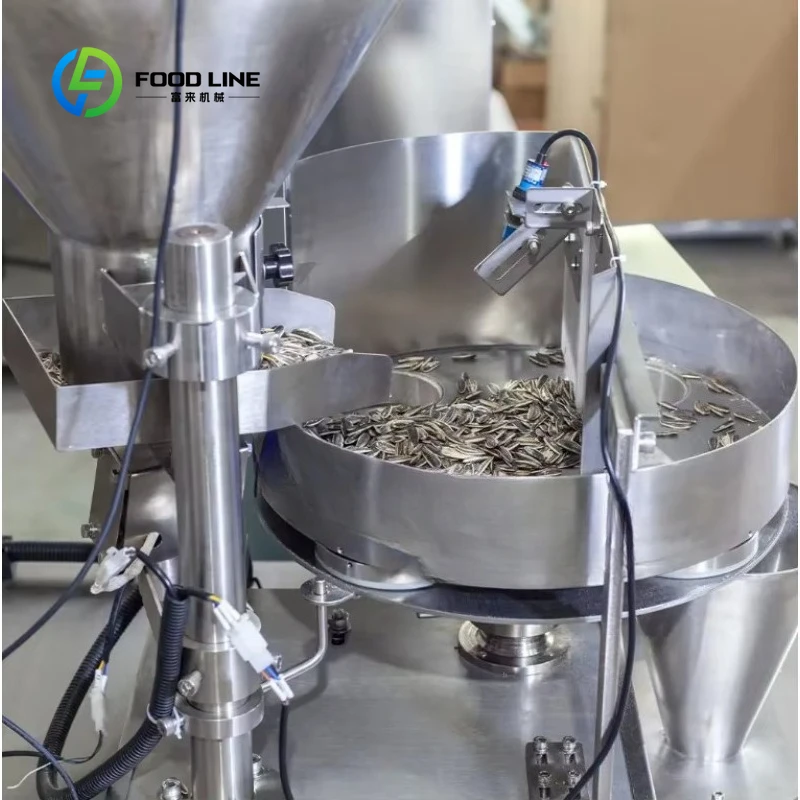

Weighing tools can be selected according to your product type and weight.
|
F-180
|
||
|
Packaging size
|
Lenght:50-170mm
Width:50-150mm |
|
|
Packing speed
|
20-100pcs/min
|
|
|
Packing film width
|
120-320mm
|
|
|
Packing Material
|
PP、PE、 PVC、 PS 、EVA 、PE T、 PVDC+PVC 、OPP+ complex CPP,ETC
|
|
|
Voltage type
|
220V/50HZ Single phase
|
|
|
Total Power
|
4KW
|
|
|
Weight
|
350kg
|
|
|
Machine size(L*W*H)
|
1350*1000*2350mm (Including dial measuring cup)
|
|
|
F-420
|
||
|
Packaging speed (package/min)
|
20-90 bags/min
|
|
|
Packaging film width (mm)
|
200-420 mm
|
|
|
Bag size (mm)
|
Lenght:50-300mm
|
|
|
Width:90-200 mm
|
||
|
Total power (kW)
|
3.9 kw
|
|
|
Motor rated total power (kW)
|
1.55 kw
|
|
|
Heating rated total power (kW)
|
2.35 kw
|
|
|
Machine net weight (kg)
|
240 kg
|
|
|
Machine external dimensions (L×W×H) (mm)
|
1580×1190×1310 mm
|
|
|
Type of power supply
|
220V 50Hz
|
|
|
Packaging Film Materials
|
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP
|
|
|
F-570
|
||
|
Packaging speed (package/min)
|
15-60 bags/min
|
|
|
Packaging film width (mm)
|
320-570 mm
|
|
|
Bag size (mm)
|
Lenght:80-400 mm
|
|
|
Width:150-275 mm
|
||
|
Total power (kW)
|
5.0 kw
|
|
|
Motor rated total power (kW)
|
1.8 kw
|
|
|
Heating rated total power (kW)
|
3.1 kw
|
|
|
Machine net weight (kg)
|
340 kg
|
|
|
Machine external dimensions (L×W×H) (mm)
|
1730×1310×1620 mm
|
|
|
Type of power supply
|
220V 50Hz
|
|
|
Packaging Film Materials
|
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP
|
|
Select the most suitable machine according to the size of the product packaging film

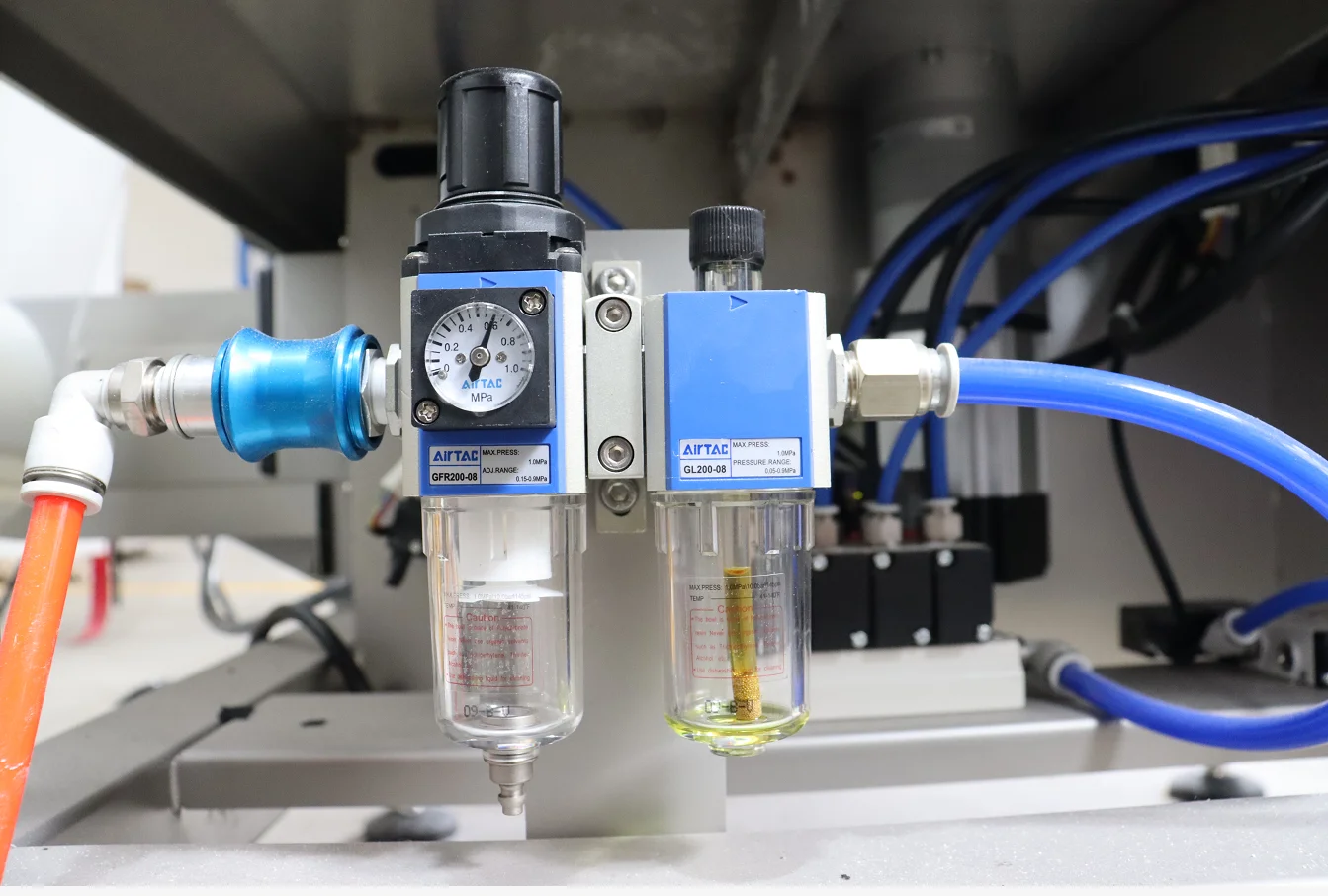

Air source processor is used to deal with the pressure release during the operation of the machine. The interface is made of
stainless steel which is durable and not easy to be damaged.
stainless steel which is durable and not easy to be damaged.

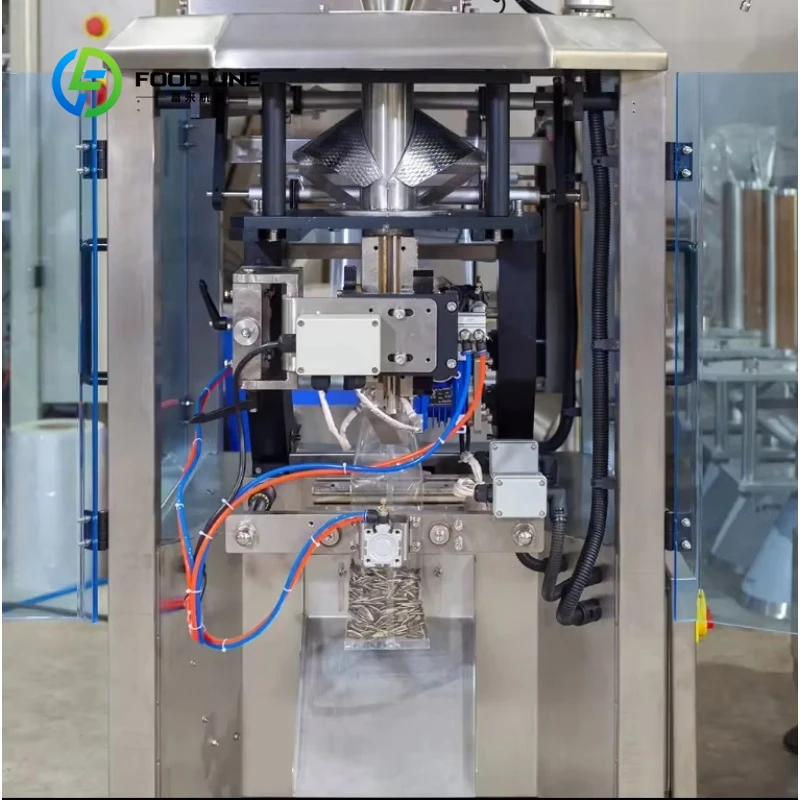

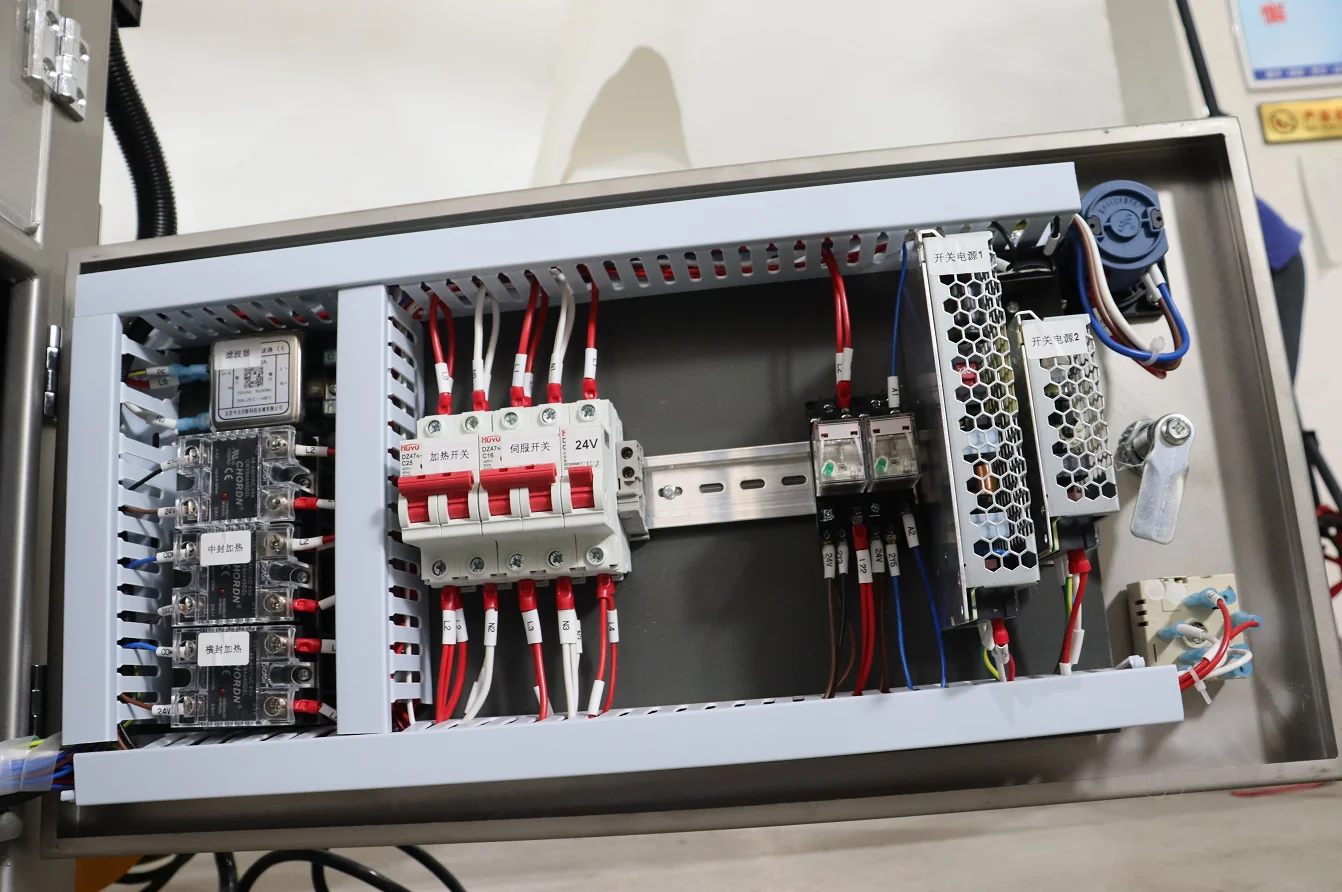

Full servo control system, Famous electrical configuration equipped , with stable packaging process and long service life and safer use.

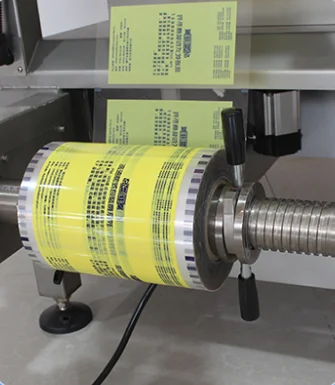

Can support double-sided film pulling

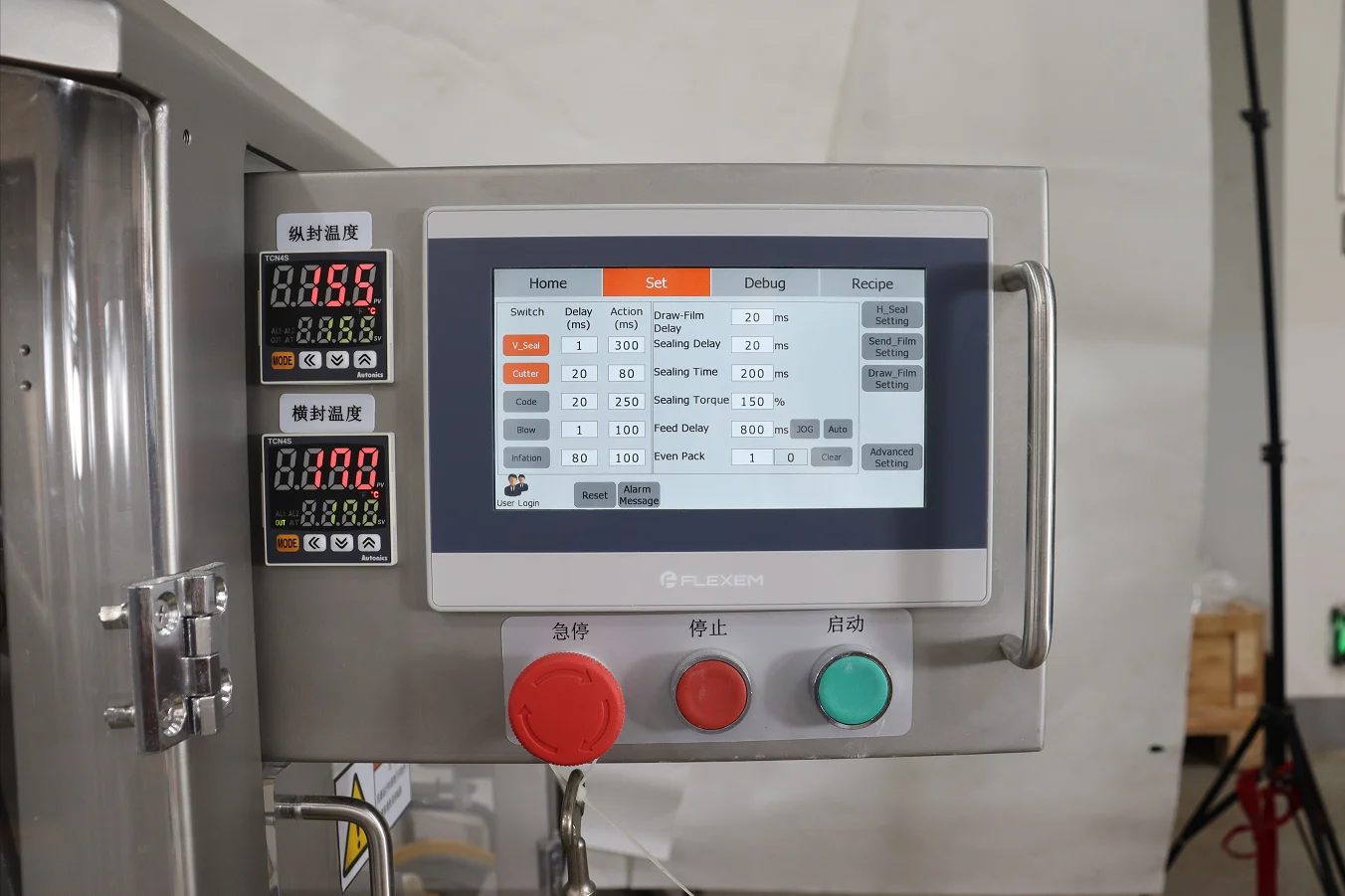

Controlled by PLC combined with touch screen (human-machine interface), it has a novel design, compact structure and beautiful appearance. It is characterized by accurate quantification, stable and reliable performance, high degree of automation, simple operation and convenient maintenance.
